Introduction

Ease of Use

The LUMIX G VARIO HD 14-140mm F4.0-5.8 ASPH. MEGA O.I.S. lens attached to a Panasonic Lumix DMC-GH2

The LUMIX G VARIO HD 14-140mm F4.0-5.8 ASPH. MEGA O.I.S. is surprisingly small and light for a superzoom lens covering a 35mm equivalent focal range of 28-280mm. Zoomed out to the 14mm setting, the lens practically fits in the palm of your hand.

Zoomed out and zoomed in

Zooming is not internal – as you can see, the front extends considerably upon zooming to 280mm, at which point the lens cannot be considered tiny any more. Still, it's a pretty compact affair for a lens that spans such a vast focal range. It's also light at just over 450 grams, although that's nearly 40% heavier than the other Micro Four Thirds superzoom, the M.ZUIKO Digital 14-150mm f/4-5.6 ED.

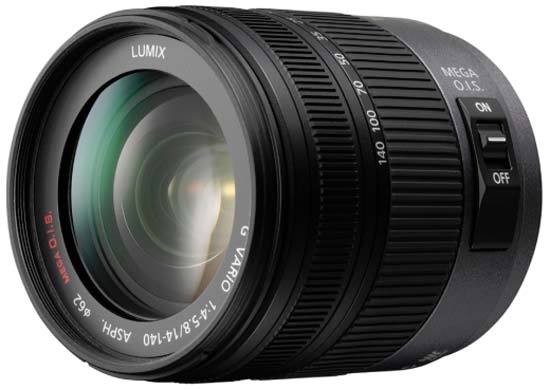

Front of lens, isometric view

In terms of features, the lens offers a switch for turning image stabilisation on or off, one of the main reasons why it is so much heavier than the above-mentioned Olympus lens.

Alongside the DMC-GH2

The LUMIX G VARIO HD 14-140mm F4.0-5.8 ASPH. MEGA O.I.S. lens may have a lot of plastic parts, but the lens mount is, thankfully, made of metal. Panasonic does not claim any sort of weather resistance for this lens, and indeed you cannot see a rubber seal around the mount (note that no current Micro Four Thirds camera is weather sealed anyway).

Rear of lens, isometric view

Usefully the lens comes with a hood and a cloth storage bag, and it accepts 62mm filters.

Focal Range

At the 100mm end of the zoom range, the lens has a diagonal angle of view of 75°, equivalent to that of a 200mm lens in a 35mm system.

Field of view at 14mm

At the 140mm end, the angle of view is 8.8°, which is the same as that of a 280mm lens on a 35mm full-frame camera.

Field of view at 140mm

Focusing

The LUMIX G VARIO HD 14-140mm F4.0-5.8 ASPH. MEGA O.I.S. lens offers virtually silent focusing. In use, we have also found the system very, very quick on the DMC-GH2, certainly faster than other Micro Four Thirds lenses. With the focus mode on the Panasonic Lumix DMC-GH2 set to AFC, the lens tracked moving subjects well.

The 62mm filter thread does not rotate on focus, which is good news for users of polarisers and graduated neutral density filters.

Manual focusing is possible in a focus-by-wire fashion. This should not put you off using it as it feels pretty natural in use, and actually enables the camera to display a magnified view of the subject automatically, i.e. without your having to press a dedicated button or enter the menu. The focus ring is slim but adequate for the job.

Chromatic Aberrations

Chromatic aberrations, typically seen as purple or blue fringes along contrasty edges, can be a bit of a problem with this lens, particularly when used wide open in the telephoto range. The crops below are from photos taken at the 28mm and 280mm settings. These results are far from disastrous though, and not unexpected on a long zoom like this.

Light Fall-off

With the lens set to its maximum aperture, you can see some light fall-off in the corners, but nothing excessive. You will likely only notice this when photographing a subject with large homogeneous surfaces (see the macro shot below for an example).

Macro

Although Panasonic does not call this a macro lens, it actually puts up a pretty good close-up performance, with a maximum 0.4x magnification rating and able to focus at 50cms away from the subject. Our test shot, which was taken at f/4, shows a bit of softness at close inspection, but stopping down to f/5.6 cures this problem.

Close-up performance

Sharpness

In order to show you how sharp this lens is, we are providing 100% crops on the following page.
